Why a 10-Layer PCB Is the Right Choice for High-Speed Designs
As devices become faster and more compact, the PCB must carry more signals without sacrificing quality. A 10-layer PCB board offers enough routing space for differential pairs, power planes, ground shielding, and sensitive signal isolation. This structure helps maintain stable impedance and supports cleaner transmission at high frequencies. For engineers, the value of a 10-layer stack-up is not just density. It is also about predictability. When the layer structure is well controlled, performance becomes more repeatable across prototypes and volume production. That matters in telecom, industrial automation, computing, instrumentation, and other high-speed applications.
Built for Signal Integrity and Assembly Reliability
A high-frequency high-speed 10-layer PCB rigid board must perform well in both design and assembly. That is why this solution includes impedance-controlled design to maintain consistent electrical behavior across critical traces.
The ENIG surface treatment provides excellent solder ability and a flat finish, which is ideal for fine-pitch components, BGAs, and high-reliability assembly. In addition, pad with resin plug hole design that complies with IPC-4761 Type VII improves pad strength and helps prevent solder-related defects in compact layouts. The board also supports press-fit holes, which are important for connector retention and mechanical reliability. With hole tolerance controlled to +/-2 mil, customers can expect tighter fit consistency for demanding assembly requirements.
TU883SP Substrate Improves High-Frequency Stability
This board uses halogen-free high-frequency high-speed TU883SP base material, which is selected for its suitability in demanding signal environments. Compared with standard materials, this substrate better supports high-speed signal propagation and helps reduce electrical variation across the board.
For brands selling into the US and Europe, halogen-free construction also aligns with broader environmental and compliance expectations. That makes the board attractive not only for technical performance, but also for procurement and product positioning.

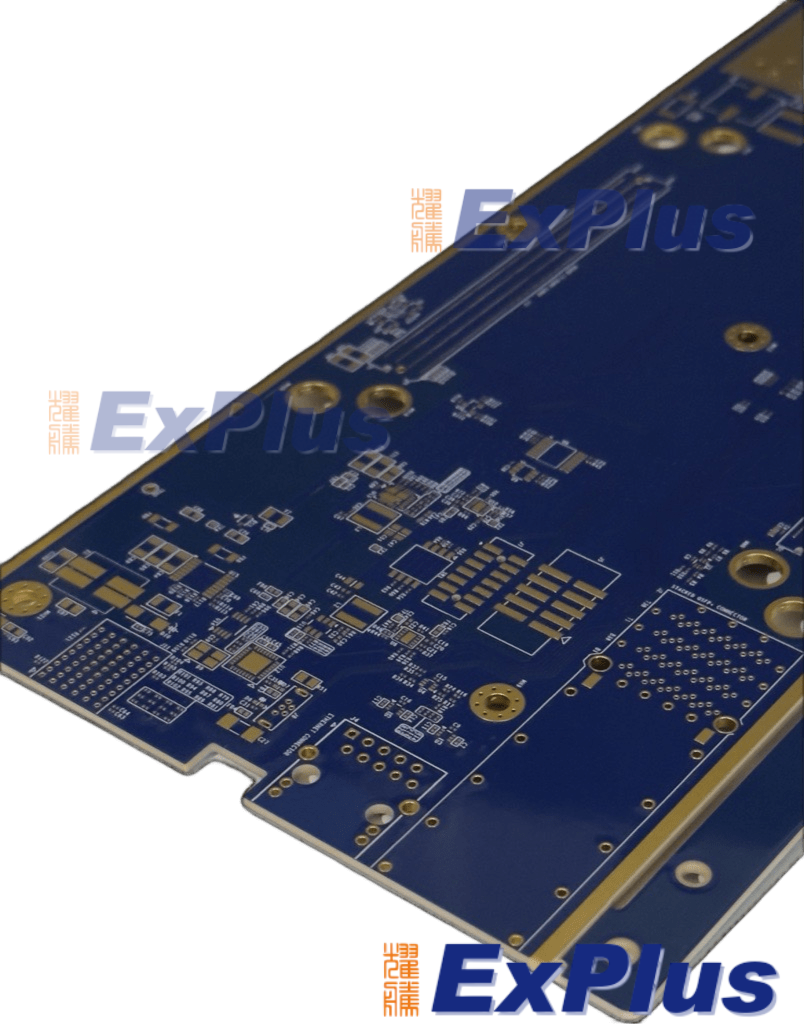

High-Frequency High-Speed 10-Layer PCB Rigid Board: Precision for Demanding Electronics
The high-frequency high-speed 10-layer PCB rigid board is built for applications where signal integrity, mechanical stability, and repeatable manufacturing quality are non-negotiable. Designed with halogen-free TU883SP substrate, this PCB 10-layer board supports high-speed routing with controlled impedance, helping reduce loss, crosstalk, and noise in complex circuits. The board also features ENIG surface finish, resin-filled via-in-pad compliant with IPC-4761 Type VII, press-fit holes, and hole tolerance control within +/-2 mil, making it suitable for dense assemblies and reliable interconnect performance. With finished copper thickness of ≥ 1 mil (25 μm) in plated holes, surface copper acceptance standard of 1.5 mil (38 μm) on outer layers and 0.98 mil (25 μm) on inner layers, plus THE/HVLP/IPC Class 3 compliance, this design is positioned for high-reliability markets. For B2B sourcing, R&D teams, and engineers, it offers a practical balance of performance, customization, and price advantage for projects that demand both technical rigor and supply-chain flexibility.
Copper Thickness and IPC Class 3 Quality Control
Manufacturing quality is one of the strongest selling points of this product. The board is produced to meet THE/HVLP/IPC Class 3 standards, which is important for applications where long-term reliability is essential.
Copper thickness control is equally important. The finished specification includes plated hole copper thickness of at least 1 mil (25 μm), while the acceptance standard for copper thickness is 1.5 mil (38 μm) on outer layers and 0.98 mil (25 μm) on inner layers. These values help support electrical stability, thermal durability, and dependable solder joint performance.
For buyers, these controls reduce risk. For engineers, they improve confidence in validation. For end users, they support product reliability in the field.
Price Advantage and Customization for B2B Projects
One of the key brand differentiators of this high-frequency high-speed 10-layer PCB is the combination of price advantage and customized service. Many buyers assume advanced materials and tight process control always mean high cost. In practice, a well-managed manufacturing partner can offer a more efficient total solution by matching material selection, stack-up design, and process capability to the actual application.
Customization is especially valuable for projects requiring special impedance targets, via structures, copper thickness control, or press-fit integration. Rather than forcing a standard board into a critical design, engineering teams can work with a supplier to optimize the board around real-world requirements.
This makes the product suitable for:
- procurement teams comparing qualified suppliers
- R&D departments building next-generation devices
- engineers validating high-speed performance
- OEMs seeking stable quality and scalable production
Positioning for International Markets
This product is well positioned for that market because it combines:
- high-frequency material selection
- controlled impedance capability
- IPC Class 3 manufacturing
- fine tolerance control
- custom service support
- competitive pricing
That combination helps the board stand out in both technical sourcing and commercial evaluation.
FAQ
What is a high-frequency high-speed 10-layer PCB rigid board used for?
It is used in applications that require dense routing, controlled impedance, and stable high-speed signal transmission, such as telecom, industrial control, and advanced electronics.
Why choose TU883SP substrate?
TU883SP is a halogen-free high-frequency material designed to support better signal stability and performance in demanding electronic systems.
What does IPC-4761 Type VII mean?
It refers to a resin-filled via-in-pad structure that improves pad flatness, assembly reliability, and high-density design performance.
Is ENIG good for high-speed PCB assembly?
Yes. ENIG offers a flat, solderable, and corrosion-resistant surface, which is ideal for fine-pitch and reliable assembly processes.
Why is hole tolerance +/-2 mil important?
Tighter hole tolerance improves connector fit, press-fit reliability, and overall assembly consistency.
